Description

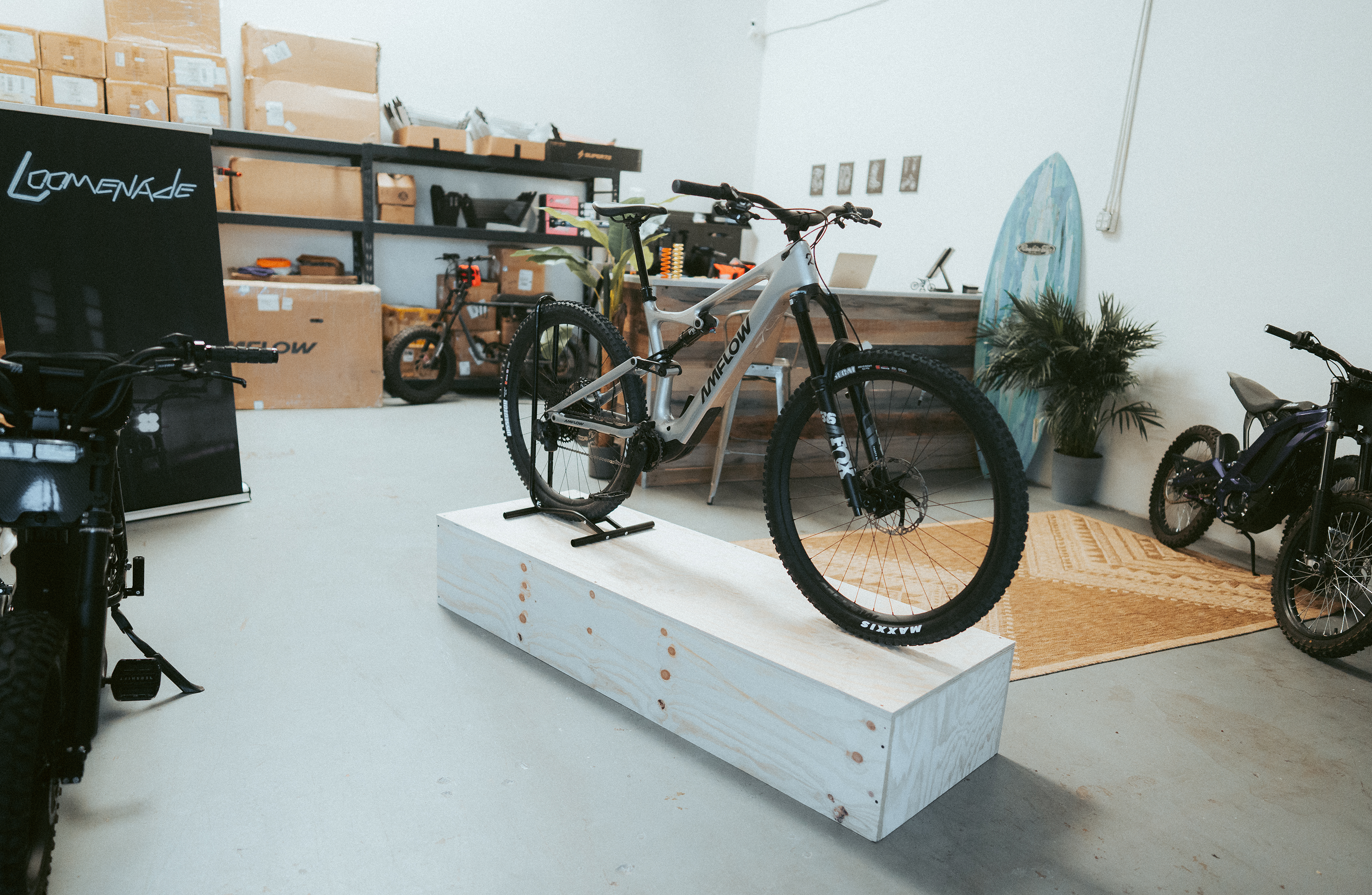

x*Limited inventory will be available in our San Diego warehouse in Late March. If you would like to make a reservation for local pick-up, please email us. Complete payment can be made in person. If you don't respond

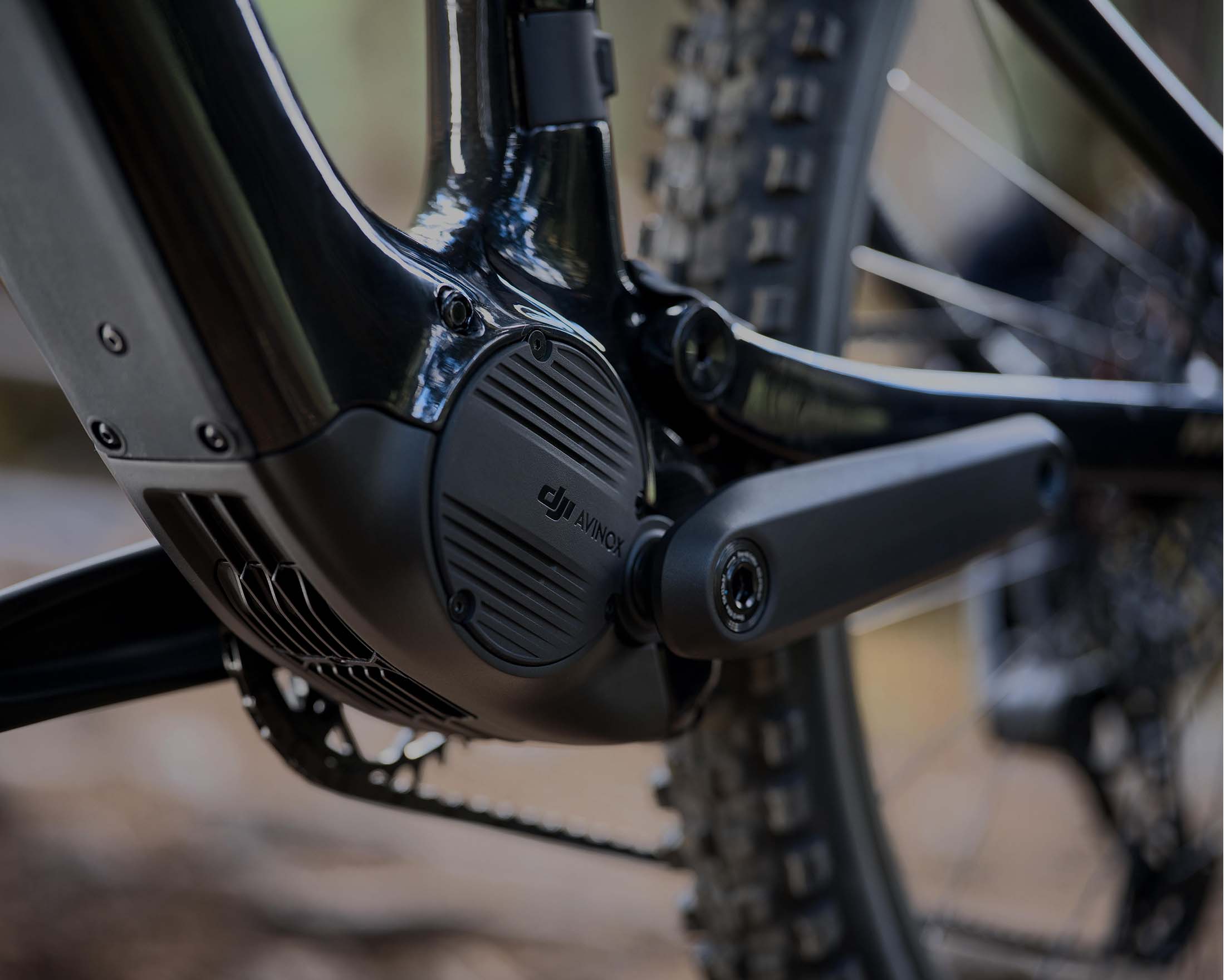

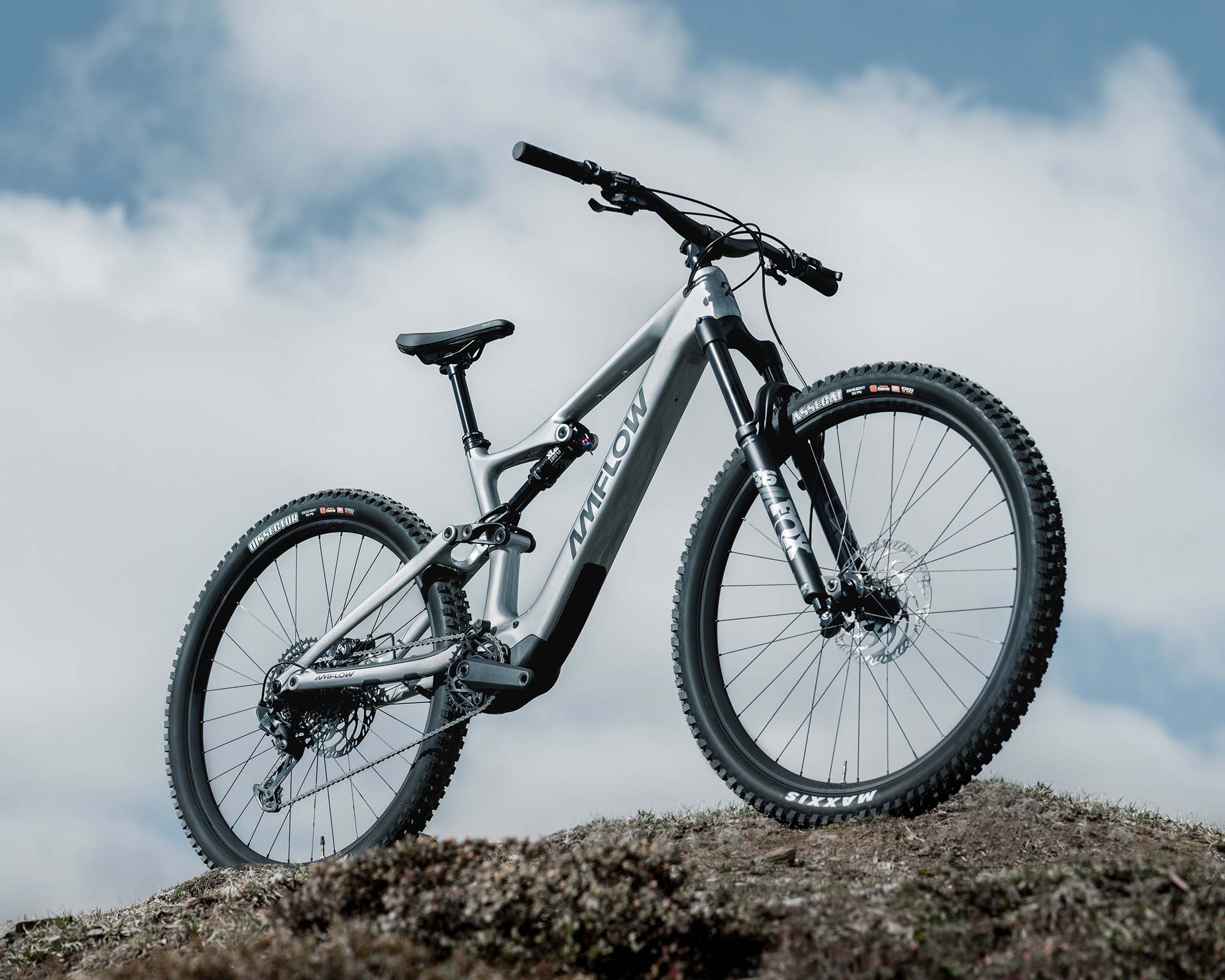

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.
The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.
| Size | Height (cm) | Height (inch) |
|---|---|---|
| M | 162 - 178 | 5'4 - 5'10'' |
| L | 170 - 185 | 5'7 - 6'1'' |
| XL | 175 - 191 | 5'9 - 6'3'' |
| XXL | 185 - 201 | 6'1 - 6'7'' |
Specifications
x| Amflow Pl Carbon (800Wh) | Amflow PL Carbon (600Wh/800Wh) | |
|---|---|---|

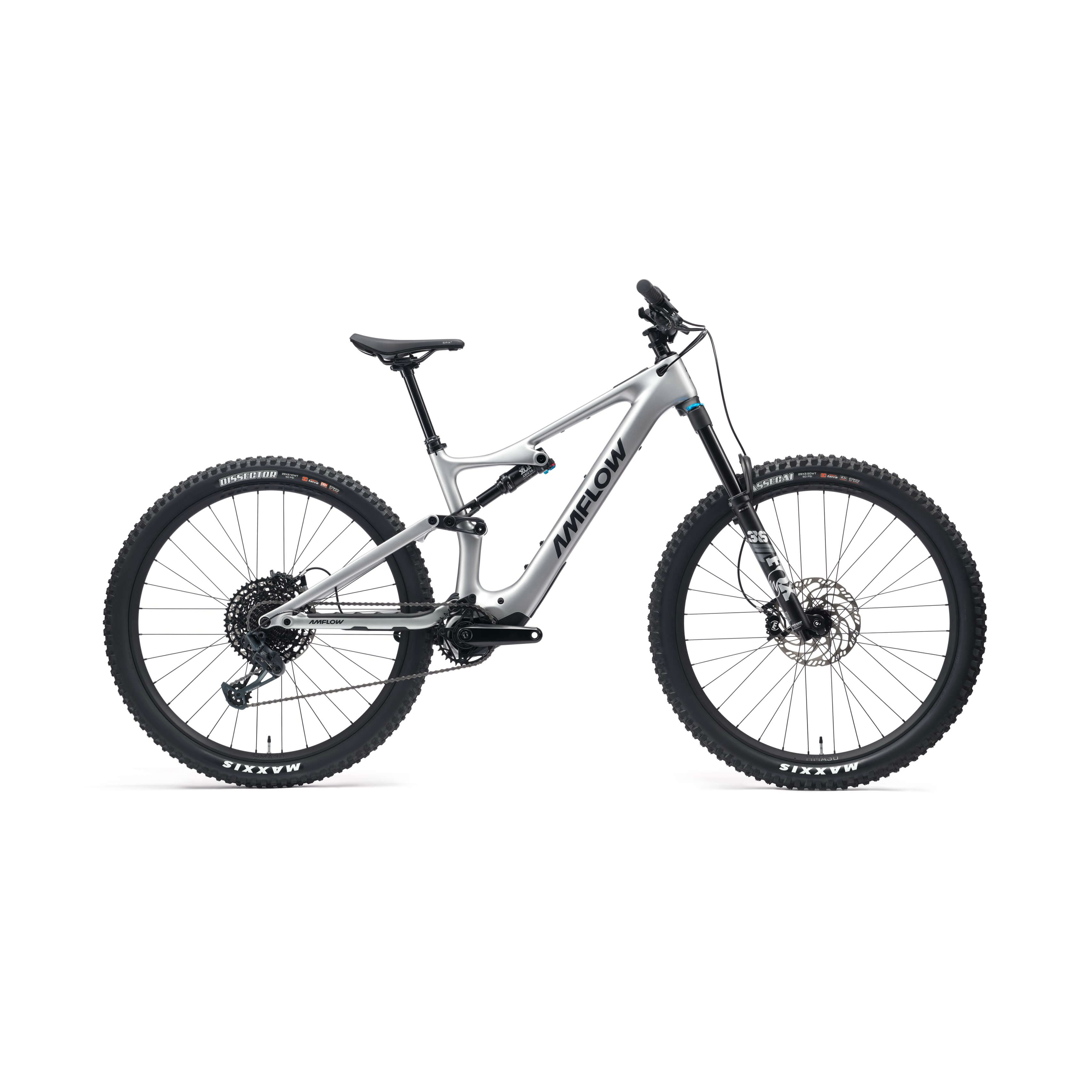

| Frame | Amflow PL Carbon Frame Satin Silver 150mm rear travel Compatible with 27.5” and 29” rear wheels |

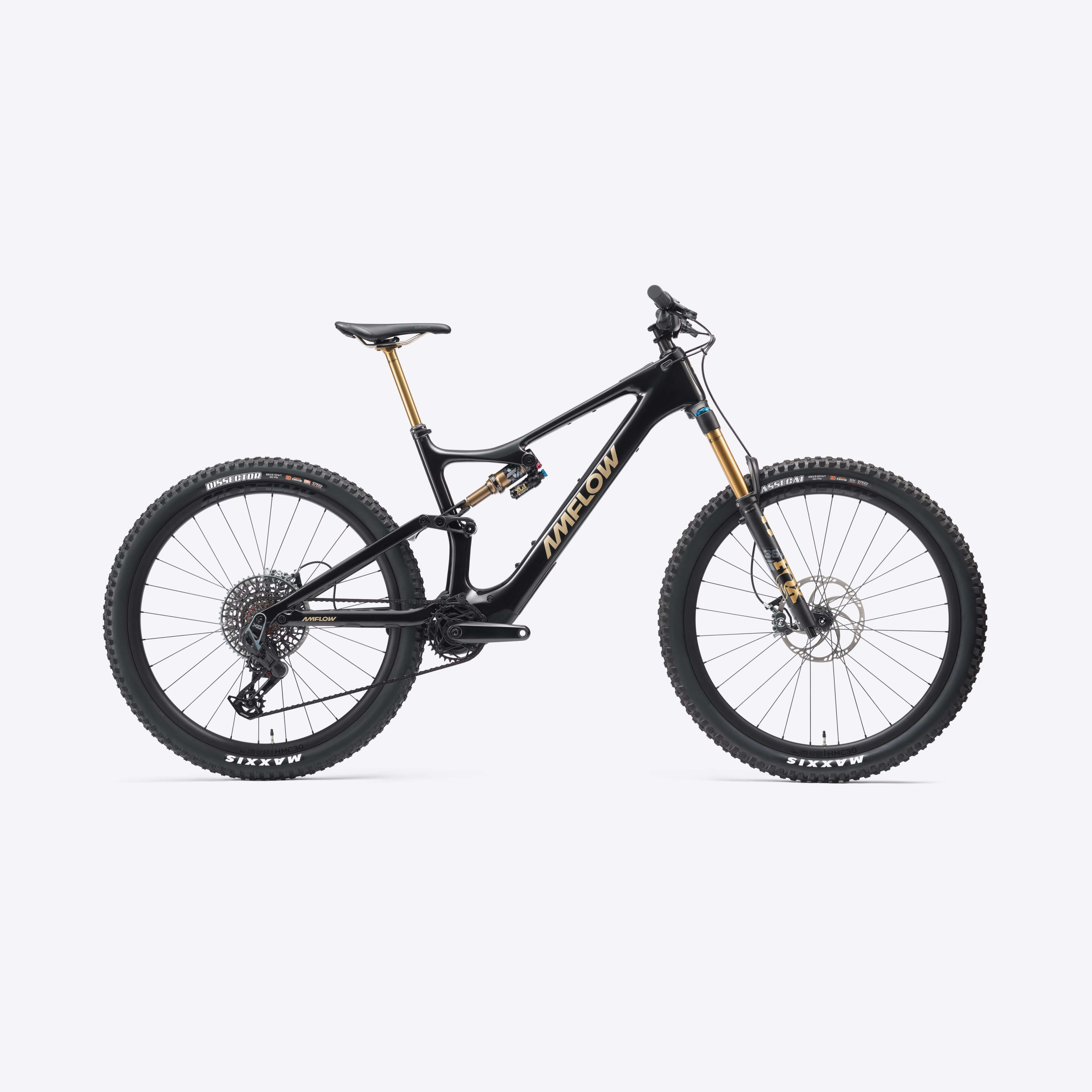

Amflow PL Carbon Frame Cosmic Black 150mm rear travel Compatible with 27.5” and 29” rear wheels |
| E-Bike System | Avinox M1 Drive Unit: 105 N·m Avinox Screen: 2-inch OLED Control Display Avinox Integrated Battery: 800Wh Avinox Wireless Controllers: Right and left sides Avinox Fast Charger: 12A/508W |
Avinox M1 Drive Unit: 105 N·m Avinox Screen: 2-inch OLED Control Display Avinox Integrated Battery: 800Wh Avinox Wireless Controllers: Right and left sides Avinox Fast Charger: 12A/508W |
| Rear Shock | FOX Float Performance Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever |
FOX FLOAT X Factory Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment |
| Fork | FOX 36 Performance 160mm travel, GRIP Damper, 15×110mm, 44mm rake |
FOX 36 Factory 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake |
| Transmission | Rear Derailleur: SRAM GX Eagle 12-speed Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click Cassette: SRAM PG-1230, 11-50T Chain: SRAM NX Eagle Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T Shift Levers: SRAM AXS Pod Controller Cassette: SRAM XS-1295 Eagle Transmission 10-52T Chain: SRAM X0 Eagle Transmission Flattop Chain Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Brakes | Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear) | Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear) |
| Wheels | Amflow HMA-30 Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T |
Amflow HMC-30 Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T |
| Tires | Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR |
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR |
| Handlebar | Amflow Enduro Alloy Handlebar 35mm rise, 800mm wide 5-degree upsweep, 9-degree backsweep |
Amflow Enduro Alloy Handlebar 25mm rise, 800mm wide 5-degree upsweep, 9-degree backsweep |
| Stem | Amflow Enduro Stem, One-piece CNC Length: 35mm Clamping diameter: 35mm |
Amflow Enduro Stem, One-piece CNC Length: 35mm Clamping diameter: 35mm |
| Saddle | Selle Royal SRX Plus | Ergon SM PRO M/L |
| Seat Post | KS Rage-i M: 150mm L: 170mm XL/XXL: 190mm |
Fox Transfer Factory, Travel adjustable in 5mm M: 125-150mm L/XL: 155-180mm XXL: 185-210mm |
Shipping & Returns
xPlease note this is a freight delivery; you will be contacted a few days prior to the delivery date to schedule a delivery time. All freight deliveries will require signature by a person over the age of 18.
We offer a 10-day return policy on all bikes. Bikes must be in their original packaging, unused. Please
See our Shipping Policy for additional details.
Order Cancellation:
Orders can only be canceled prior to shipping. Please note that there is a non-refundable fee of up to 3.5% of your total order. This is what the credit processor keeps for processing the initial transaction, and we do not have the option to refund this.
All bikes include the manufacturer's standard warranty. Please see Returns and Warranty Policy for additional details.
Damaged or missing items must be reported within 10 days of the delivery date. Please check your package carefully upon delivery, as we are unable to approve non-warranty claims past this period.
